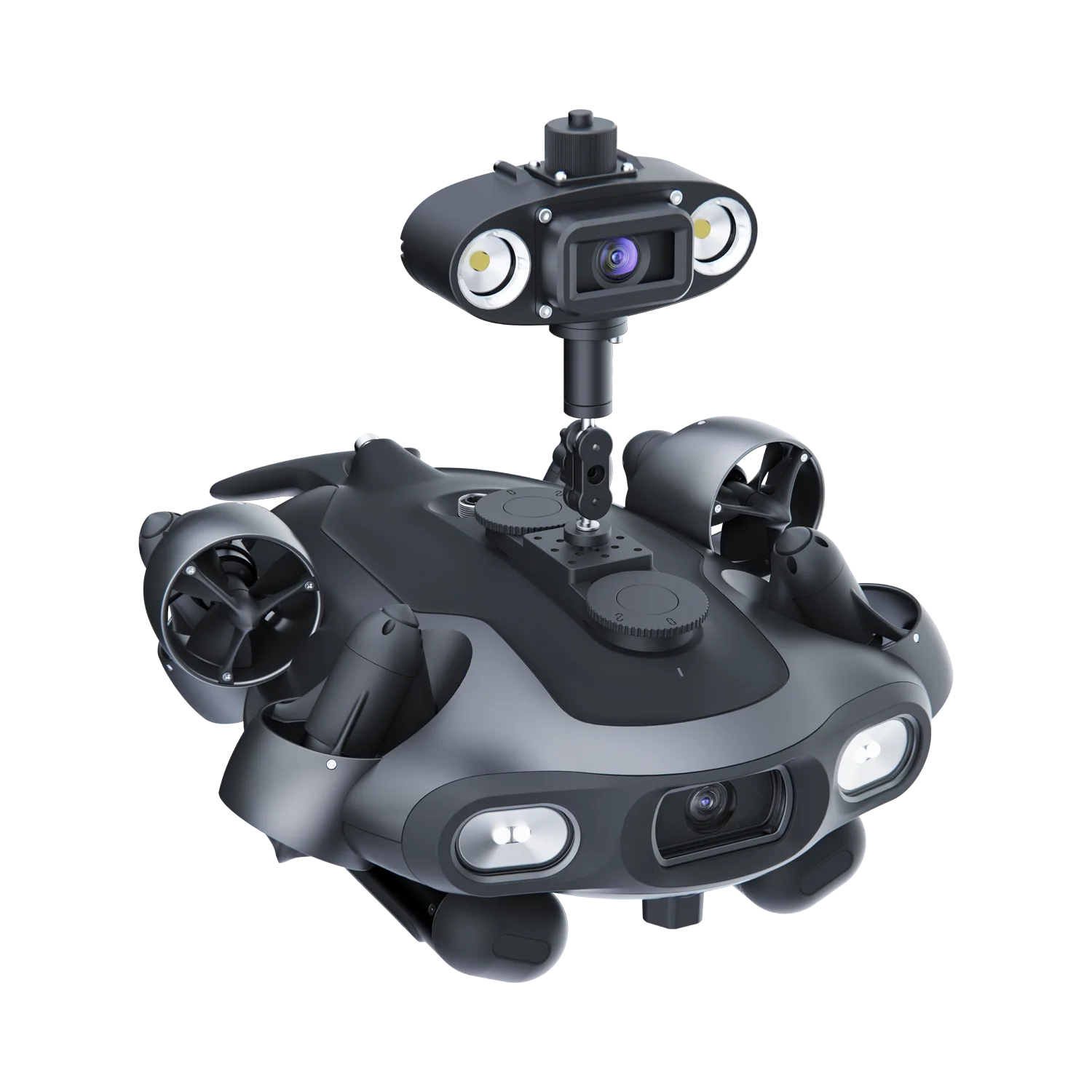

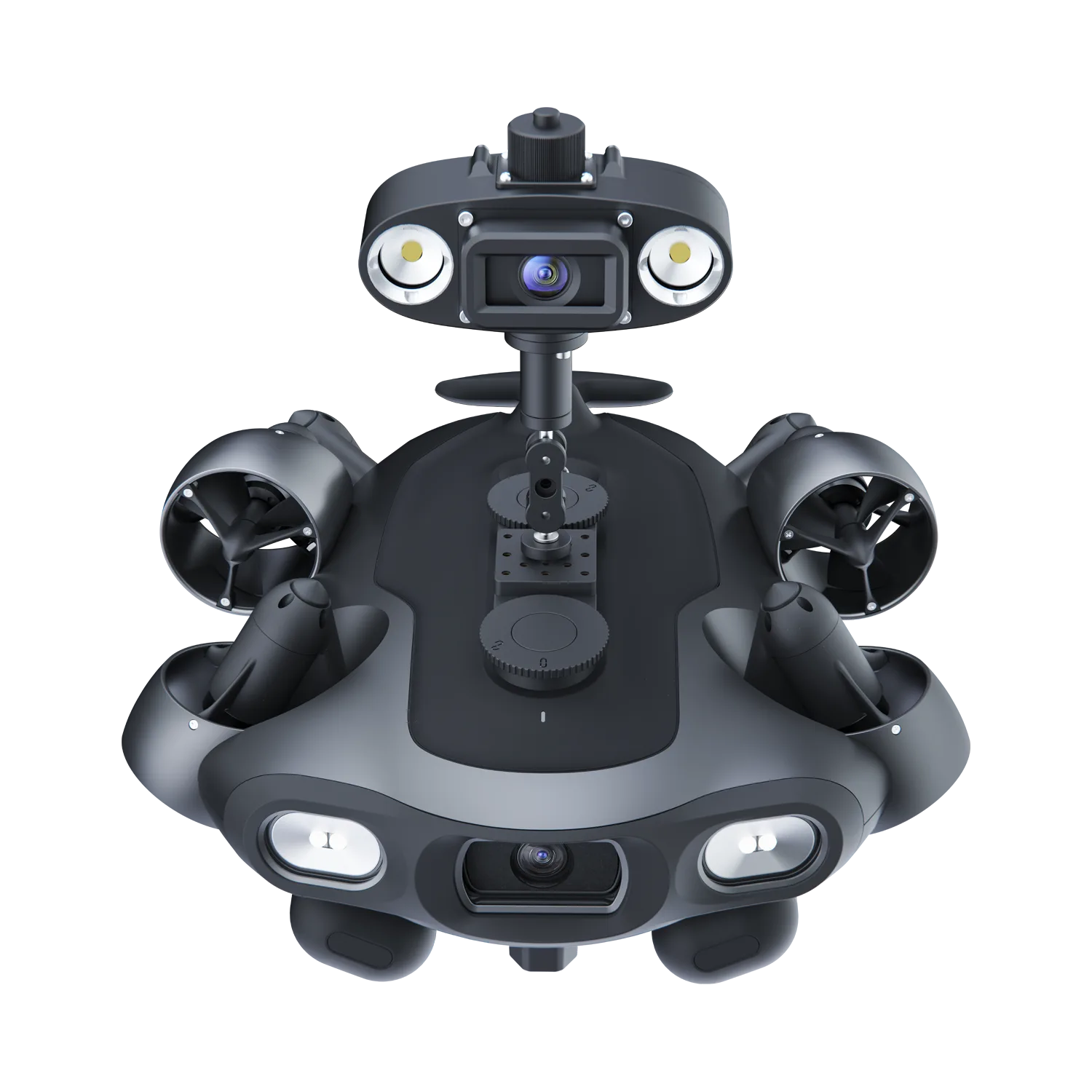

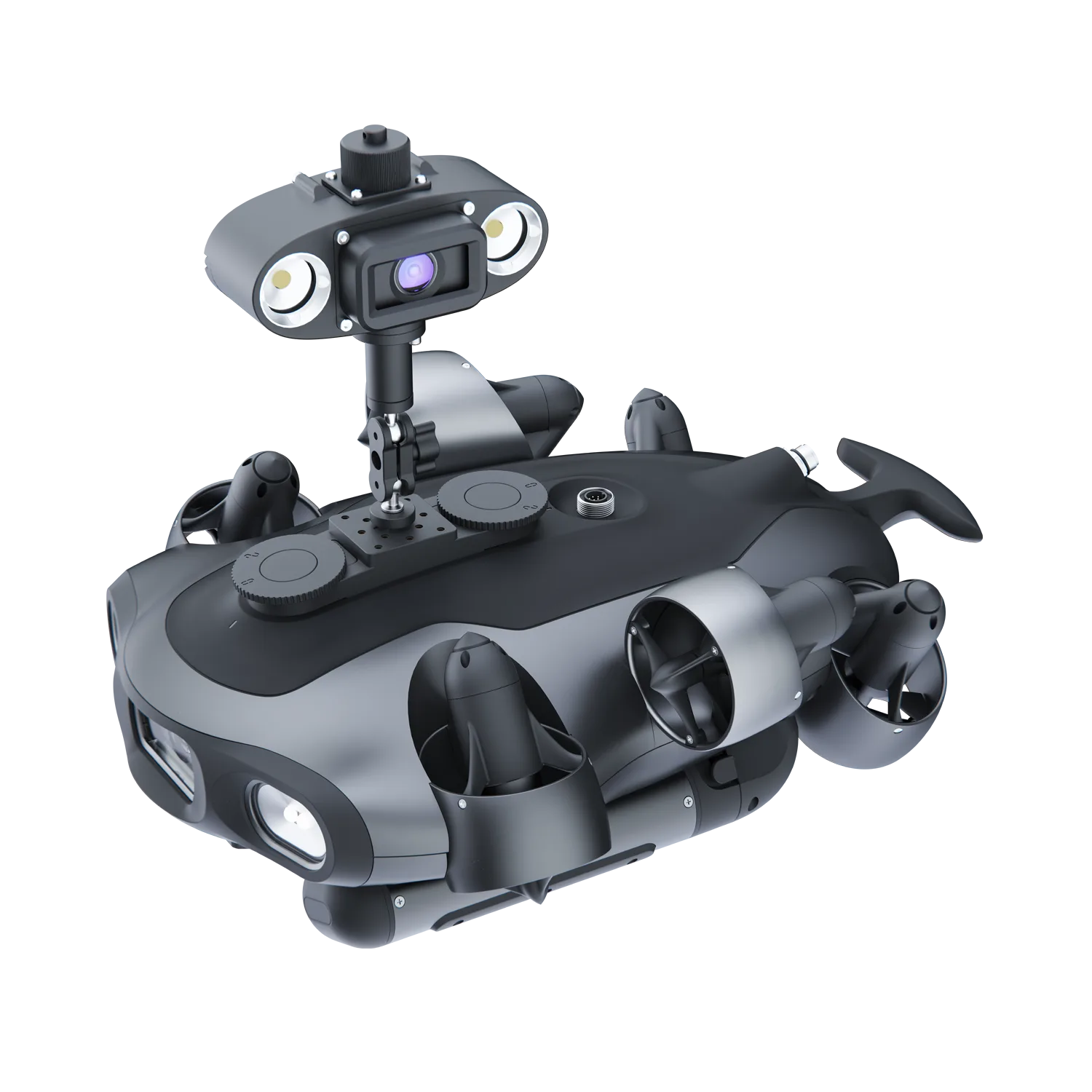

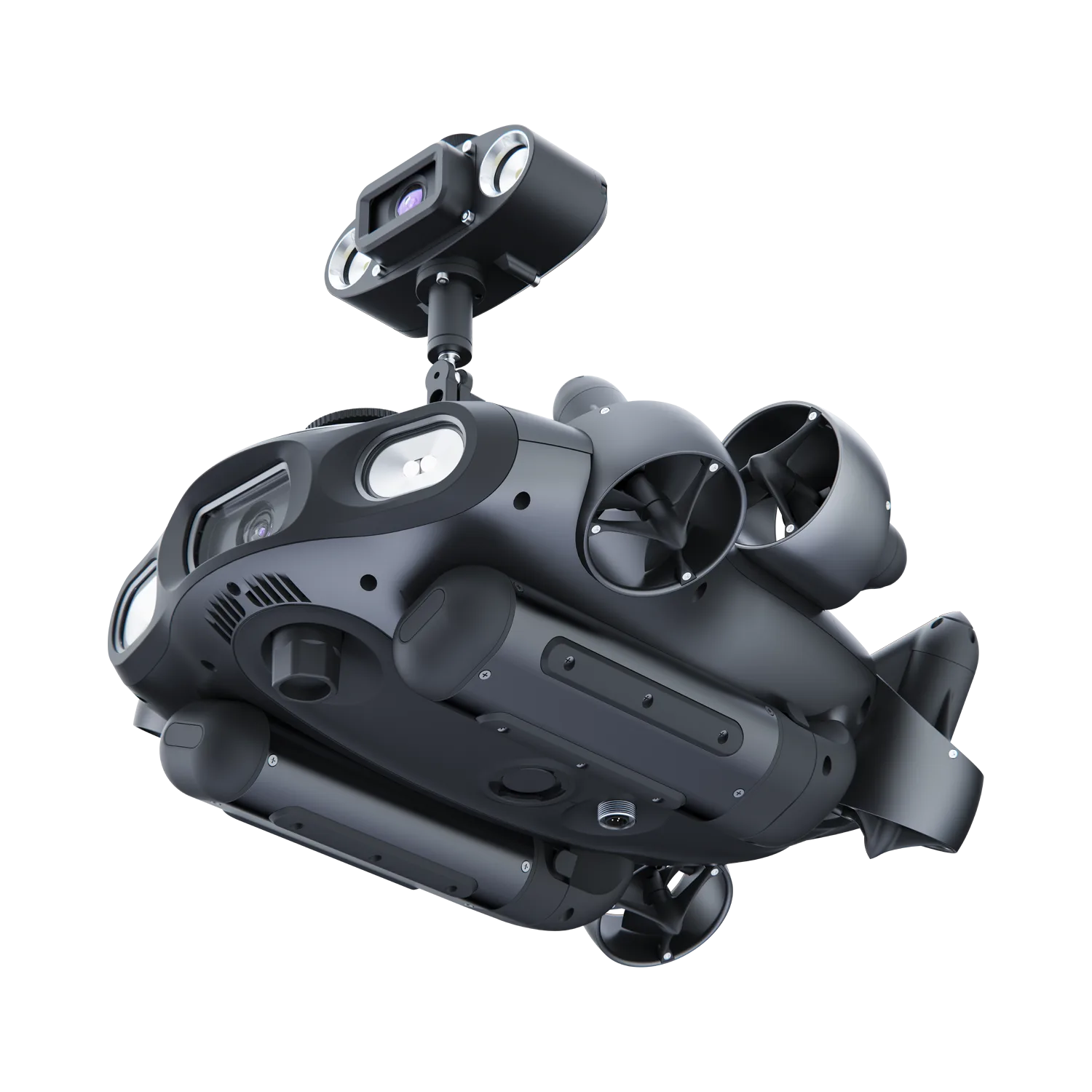

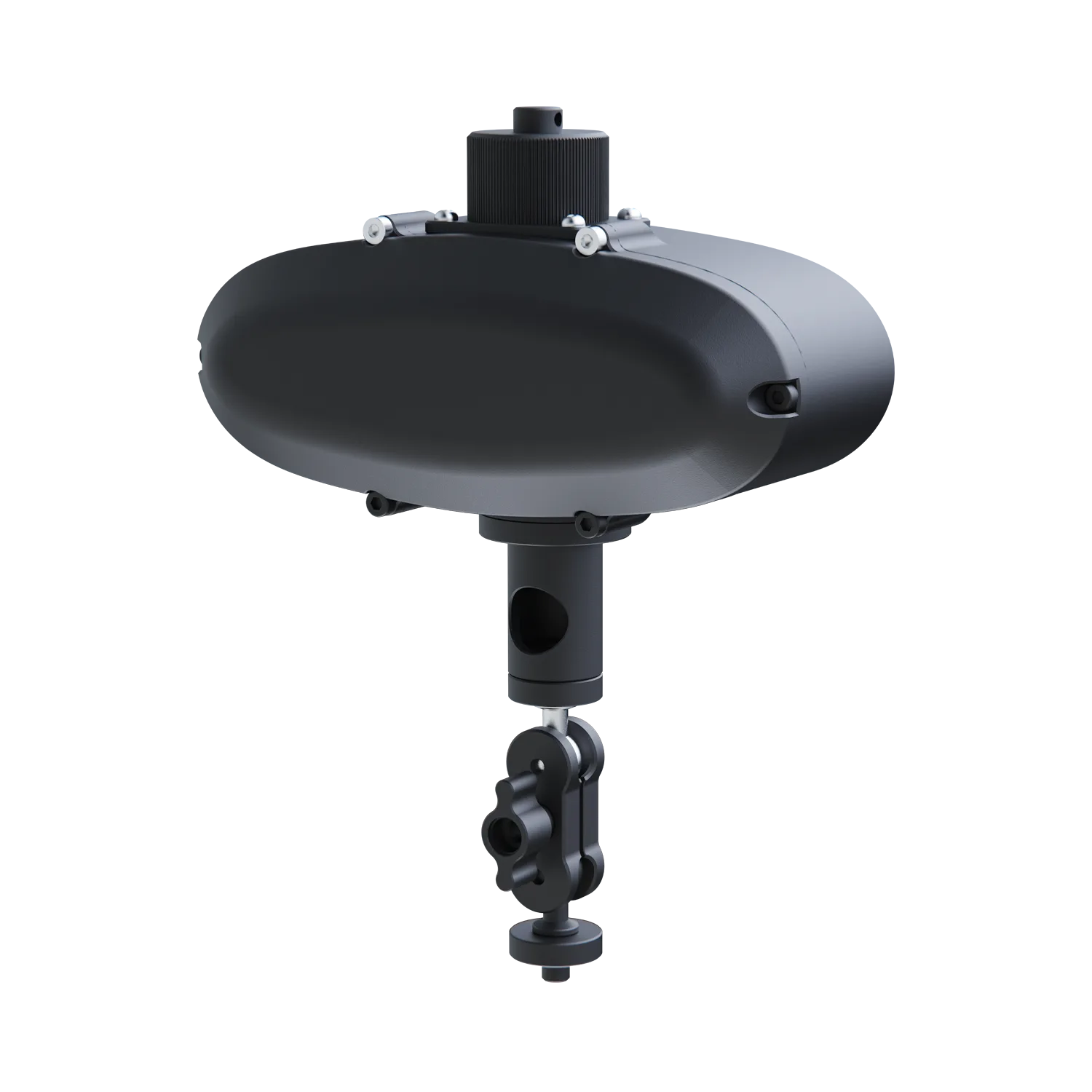

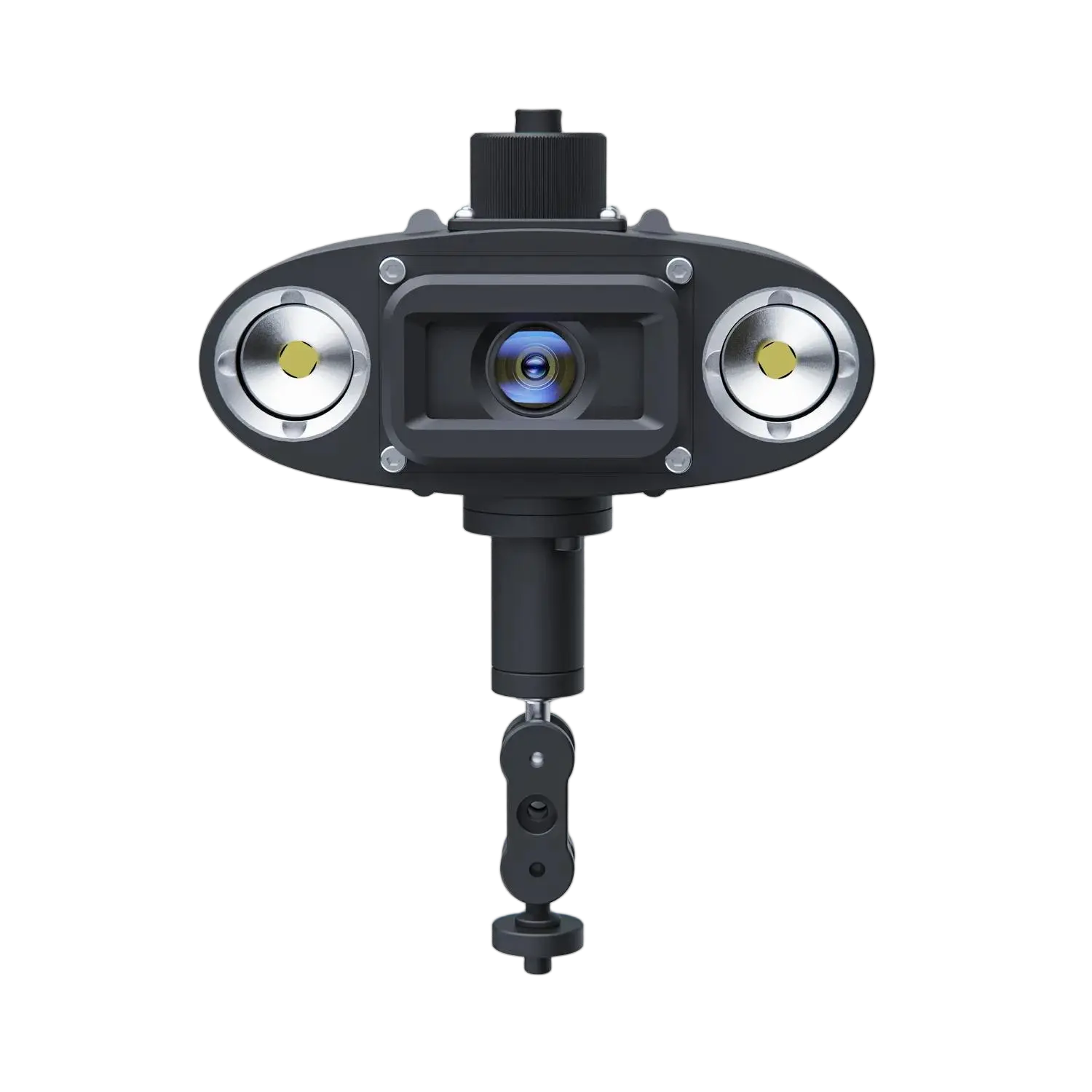

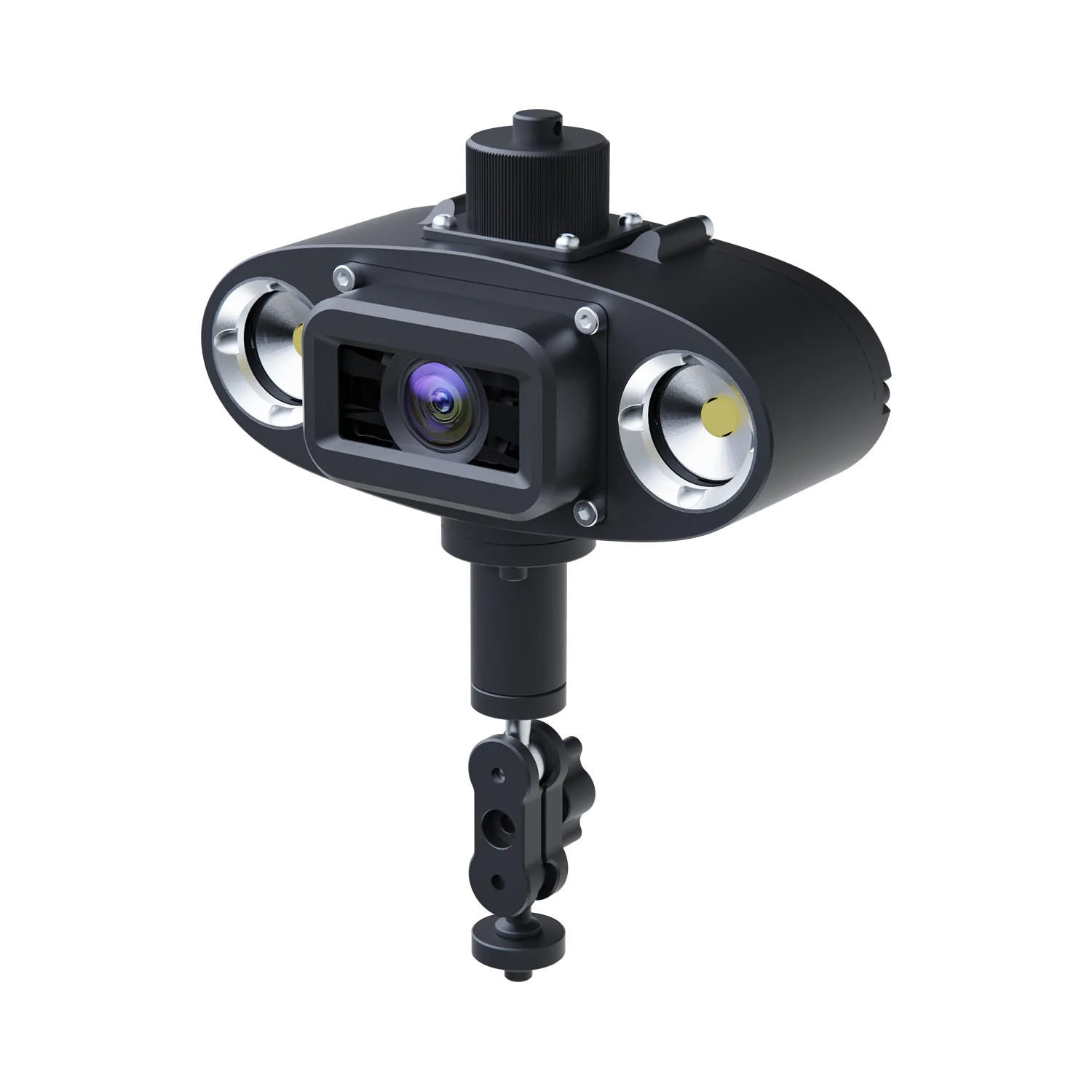

Omnidirectional Q-Camera | 360° Inspection Camera
The Omnidirectional Q-Camera is a multi-dimensional imaging extension that redefines underwater spatial control. Featuring a unique pitch-adjustable bracket, it allows for 360¡ã horizontal and wide-angle vertical rotation, breaking the limits of fixed-angle secondary cameras. By delivering a flexible 4K ultra-wide perspective alongside the main feed, it empowers professionals in missions like ship hull and infrastructure patrol, archaeology, and SAR with total visual mastery and precision.
See More
Compatible ROV Models
E-GO
Key Features:
- Omnidirectional Pitch Adjustment: 360° rotation and vertical tilt for unrestricted multi-angle observation.
- Dual-View Real-Time Sync: Simultaneous display of main and secondary feeds for enhanced situational awareness.
- 4K Ultra-HD Visuals: Professional-grade sensor delivering mapping-quality clarity for secondary views.
- 166° Wide FOV: Ultra-wide field of view to maximize peripheral detection and search efficiency.
- 1000-Lumen Intelligent Light: Dedicated high-brightness LED to ensure clear imagery in turbid or dark waters.
- 128GB Storage: Built-in memory dedicated to secondary feeds, saving 4K data without occupying ROV storage.
See More
Frequently Bought Together:
Omnidirectional Q-Camera | 360° Inspection Camera
Sale price$1,550.00
Specifications & In the Box
Specifications Camera Sensor: 1/2.3" SONY CMOS
Effective Pixels: 12 MP
Field of View: 166° (In-air) / 94° (Underwater)
Photo Resolution: 4000 × 3000
Photo Format: JPEG, DNG
Video Resolution: 4K UHD
LED Brightness: 2000 Lumens (1000 Lumens × 2)
Depth Rating: 200 m (656 ft)
Direction: 360°
Storage: 128 GB
Dimension: 15 × 20 × 8 cm (5.9 × 7.9 × 3.1 in)
Weight: 0.7 kg (1.54 lbs)
In the Box1 × Omnidirectional Q-Camera
1 × User Manual
1 × SD Card Cover Key
1 × Upper Mounting Bracket
1 Set × Installation Kit (Screws, O-rings, & Tools)
Frequently Asked Questions
Have questions about our underwater ROVs or your order? We’re here to help!
Our customer support is available Monday to Friday: 9:00 a.m. – 6:00 p.m. (UTC+8).Average response time: Within 24 hours.
Which FIFISH models are compatible with the Omnidirectional Q-Camera?
This camera is specifically designed for the FIFISH E-GO series.
Can the Omnidirectional Q-Camera be used with other ROV brands?
No. This device utilizes QYSEA's proprietary communication protocols and physical interfaces. It is exclusively compatible with designated FIFISH models.
How do I adjust the angle of the Omnidirectional Q-Camera? Is real-time adjustment possible underwater?
The Omnidirectional Q-Camera angle must be manually set and secured on land before deployment. It does not support real-time remote physical tilting or rotation while submerged.
To change your viewing perspective or capture different angles during a dive, you can utilize the ROV’s 360° omni-directional maneuverability to tilt, pitch, or rotate the entire vehicle.
Why add an Omnidirectional Q-Camera if the ROV already has a main camera?
While the primary camera is fixed forward for navigation, the Omnidirectional Q-Camera acts as a "second set of eyes," providing several mission-critical advantages:
Multi-Angle Monitoring: View the surrounding environment, tether status, or structural details from different fixed angles without needing to change the ROV's flight path.
Operational Safety: Monitor for potential obstacles or entanglements in tight spaces—such as shipwrecks or pipelines—improving situational awareness.
Enhanced Task Coordination: Observe the add-on tools in detail while the main camera maintains a view of the overall workspace, significantly increasing the success rate of complex operations.
Will it affect the ROV’s stability or station-keeping performance?
Any external attachment adds slight hydrodynamic drag. However, the E-GO’s powerful propulsion system automatically compensates for this. For centimeter-level precision in strong currents, we recommend using the DVL (Station Lock) module.
