The Developer Kit combines a field-ready FIFISH E-GO with licensed access to the QYSEA SDK and the E-Series Development Cable. Control the ROV through software, power and exchange data with external devices, then configure the cameras, sensors and task tools your application requires.
Frequently Bought Together :
We offer Free Shipping on all FIFISH ROV packages and bundles within designated regions. Please check the shipping policy for more details.
Up to 1-Year Warranty. Warranty coverage varies by component. For specific terms and durations, please check the warranty policy.
E-GO combines field-ready operation, high-detail imaging, continuous power and task-ready expansion—so your team can focus on the underwater application instead of building the vehicle around it.
Product specifications are based on official information for FIFISH E-GO. Included components may vary by pack.

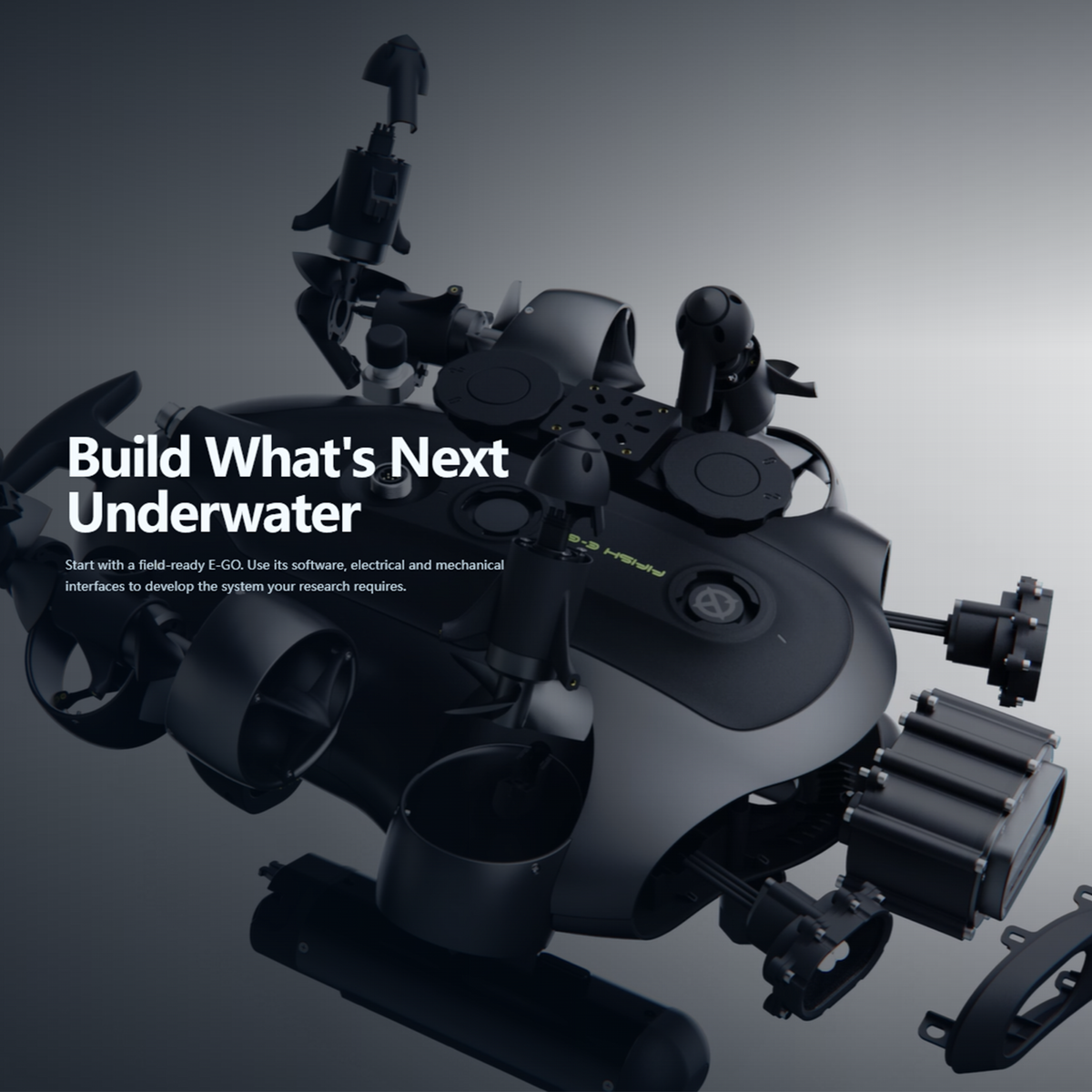

Develop at the layer your project needs—or combine software, electrical and mechanical access on one E-GO platform.

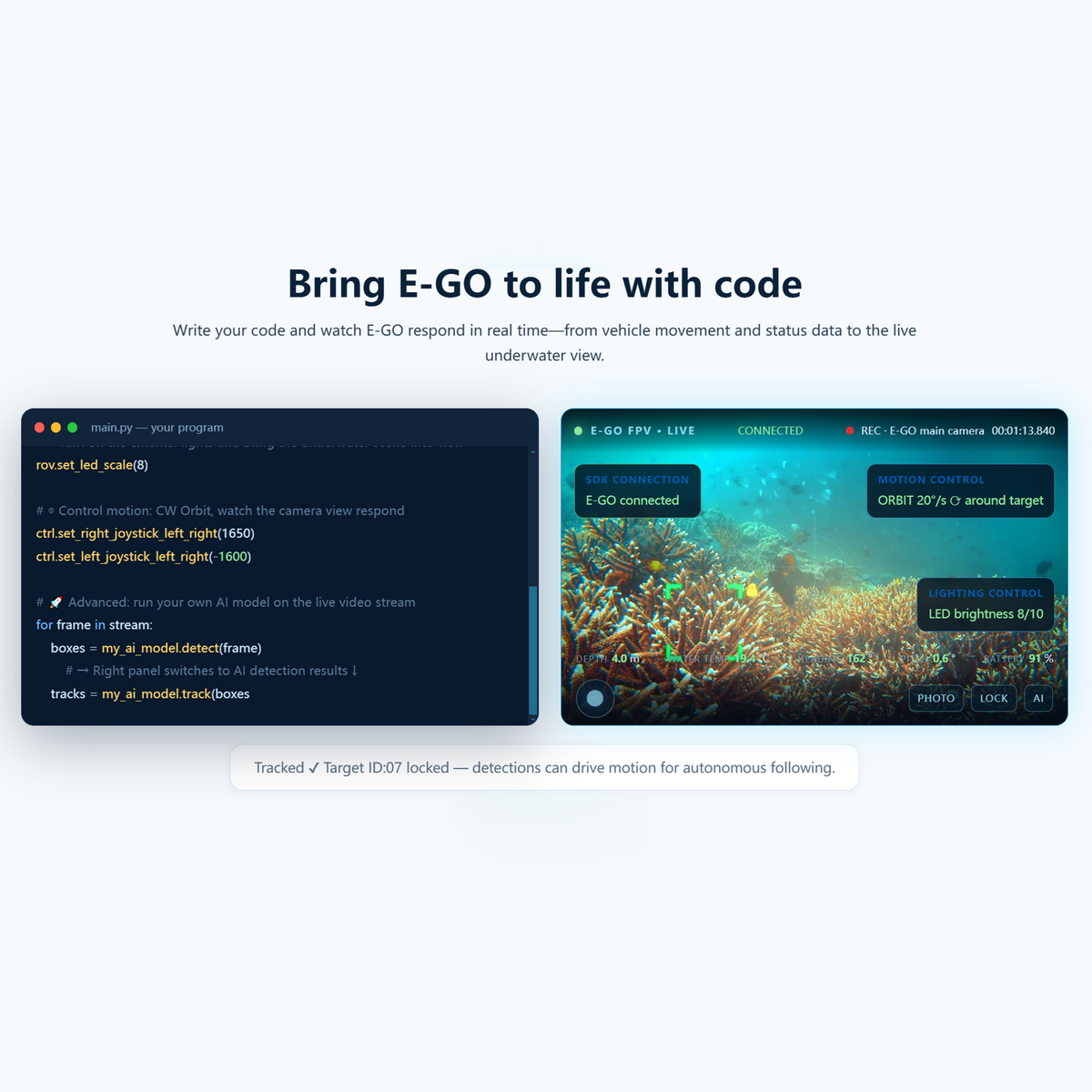

Standard E-GO functions, live video and supported vehicle status data through the QYSEA SDK.
Custom control applications, computer vision, automation and data workflows.
24V/5A power, 100 Mbps Ethernet, GPIO and UART through the E-Series Development Cable.
Integrations for sensors, onboard computers and other project hardware.

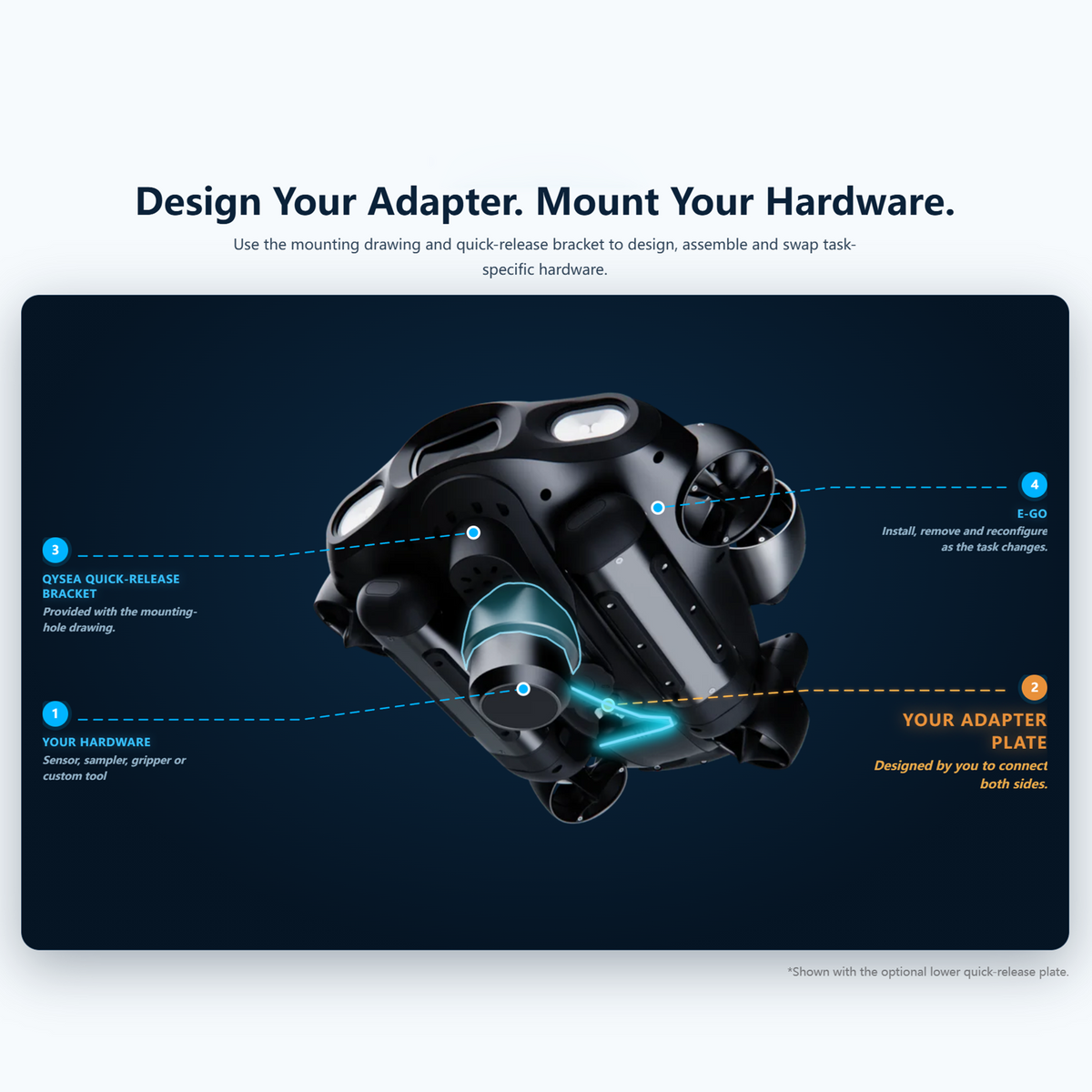

QYSEA mounting interface, quick-release bracket and mounting-hole drawing.
Your own adapter plate to connect custom sensors, samplers, grippers and tools.

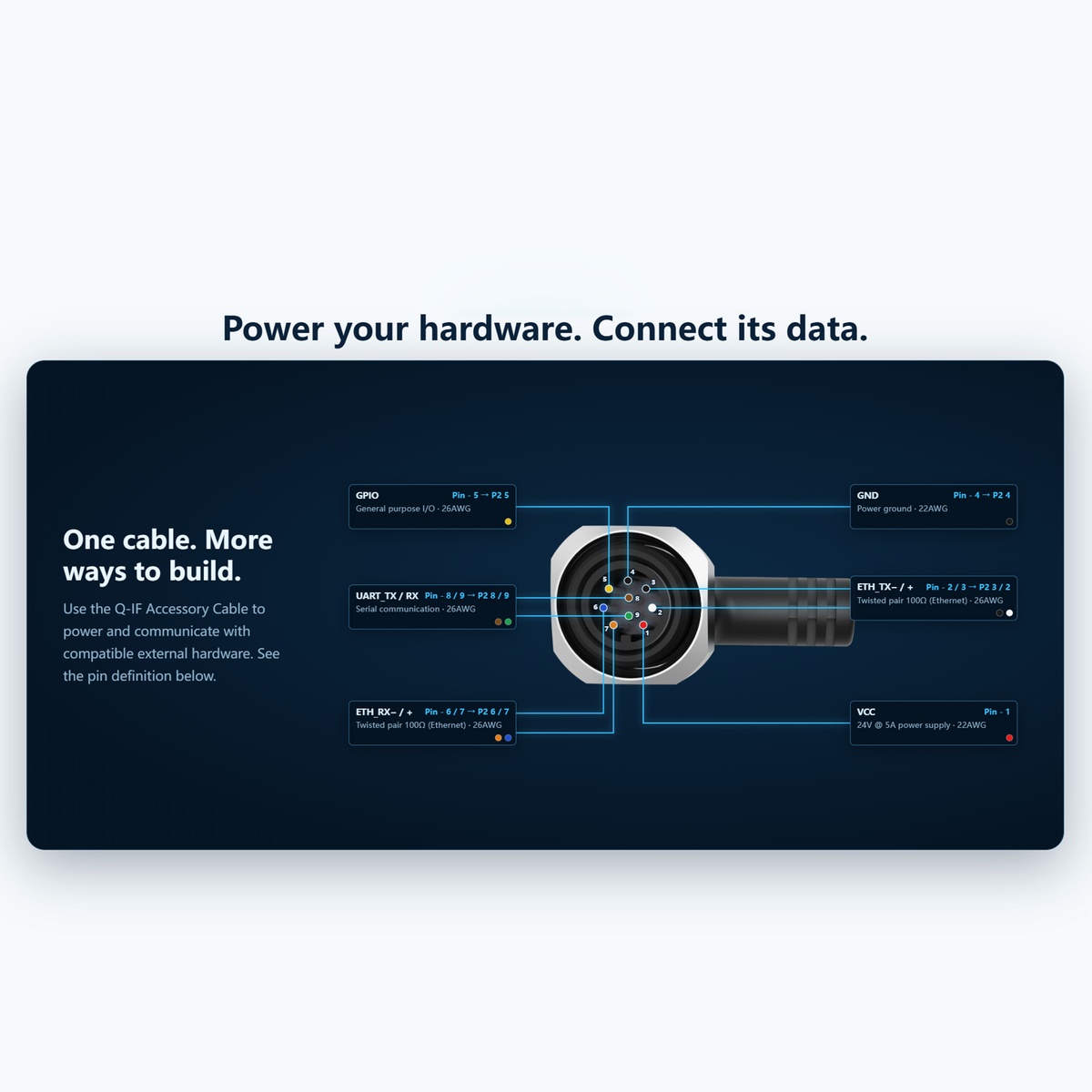

Use the Q-IF Accessory Cable to connect project hardware through a single interface.
| P1 PIN | Signal | Wire colour | AWG | Note | P2 PIN |
|---|---|---|---|---|---|
| 1 | VCC | Red | 22AWG | 24V @ 5A power supply | — |
| 4 | GND | Black | 22AWG | Power ground | 4 |
| 2 / 3 | ETH_TX− / + | White / Black | 26AWG | Twisted pair 100Ω (Ethernet) | 3 / 2 |
| 6 / 7 | ETH_RX− / + | Blue / Orange | 26AWG | Twisted pair 100Ω (Ethernet) | 6 / 7 |
| 5 | GPIO | Yellow | 26AWG | General purpose I/O | 5 |
| 8 / 9 | UART_TX / RX | Green / Brown | 26AWG | Serial communication | 8 / 9 |
See E-GO operating in Antarctic field research and the QYSEA SDK supporting university-led underwater robotics development.
The multi-institution SAEF field team—including researchers from the University of Sydney—deployed E-GO through sea-ice boreholes to image hard-to-reach seabed habitats and marine life.
The Columbia-led research team used the QYSEA SDK for behavior cloning, autonomous trials and underwater manipulation workflows.
1 × Industrial Case
1 × FIFISH E-GO ROV
1 Pair× Parallel Grippers
1 × 200m Tether Spool
1 × 3m Tether
1 × Remote Controller
1 × SD Slot Protector* & Cover Removal Tool
2 × ROV Battery*
1 × Dielectric Grease
1 × Upper Modular Mounting Base
1 × Mini Tool Box
1 × Drying Towel
1 × ROV Charger
1 × Remote Controller Charger
1 × User Manual
1 Set × Screws & O-rings
1 x Q-IF Accessory Cable
*SD Slot Protector & ROV Battery come installed on the ROV
1 × Industrial Case
1 × FIFISH E-GO ROV
1 Pair× Parallel Grippers
1 × 200m Tether Spool
1 × 3m Tether
1 × Remote Controller
1 × SD Slot Protector* & Cover Removal Tool
2 × ROV Battery*
1 × Dielectric Grease
1 × Upper Modular Mounting Base
1 × Mini Tool Box
1 × Drying Towel
1 × ROV Charger
1 × Remote Controller Charger
1 × User Manual
1 Set × Screws & O-rings
1 x Q-IF Accessory Cable
1 x 2-Finger Robotic Arm
1 x Q-Camera
*SD Slot Protector & ROV Battery come installed on the ROV
1 × Industrial Case
1 × FIFISH E-GO ROV
1 Pair× Parallel Grippers
1 × 200m Tether Spool
1 × 3m Tether
1 × Remote Controller
1 × SD Slot Protector* & Cover Removal Tool
2 × ROV Battery*
1 × Dielectric Grease
1 × Upper Modular Mounting Base
1 × Mini Tool Box
1 × Drying Towel
1 × ROV Charger
1 × Remote Controller Charger
1 × User Manual
1 Set × Screws & O-rings
1 x Q-IF Accessory Cable
1 x 2-Finger Robotic Arm
1 x Q-Camera
1 x 500mL Quick-Swap Water Sampler
1 x Laser Scaler
*SD Slot Protector & ROV Battery come installed on the ROV
BEFORE YOU ORDER
Yes. The packs are starting points. Share your task, required interfaces and preferred tools when requesting a quote.
Each pack is planned to include the paid SDK package and license key. Final license terms and pack contents will be confirmed before ordering.
Accessory compatibility and programmable control vary. Request a verified capability list for your planned combination.
E-GO provides software, electrical and mechanical development paths. Interface, power, mounting and payload requirements must be reviewed for the specific device.
